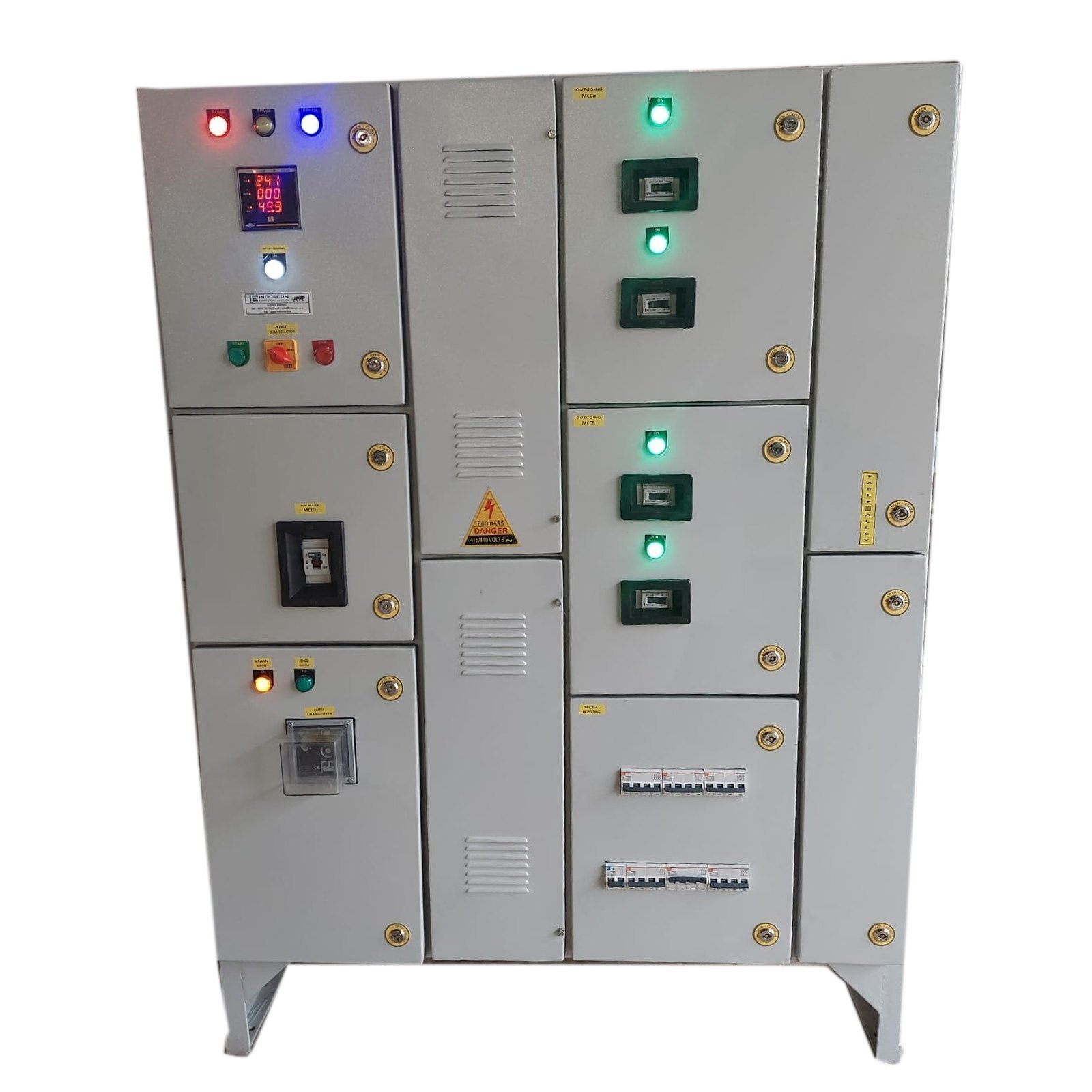

AMF & DG Sync Panels
AMF plus DG synchronisation, 10 to 2500 kVA. Built in our Kolkata factory to IS 8623 / IEC 61439-2, with CPRI 6000A type-tested design references.
An AMF panel's only job is to start the standby genset and transfer load the moment mains fails, then transfer back and shut down cleanly when mains returns. Sync panels add the extra step of phase-matching multiple DGs, or a DG to the grid, before closing the breaker — get that wrong and you're closing two live sources out of phase onto the same bus.
What's inside.
- 10 to 2500 kVA
- Double busbar for multi-DG
- DEIF, ComAp, DSE, Woodward
- AMF, Manual, Load Share, Grid Parallel
- Droop or Isochronous, kW plus kVAR
Why we built it this way.
- Multi-DG start, sync and priority handover without an operator on the panel
- EB fail auto-transfer and auto-restore, tuned to your no-break window
- Controller-agnostic. We wire on the brand your service engineer already carries
- FAT before dispatch. Test sheet, SLD, GA and wiring drawings in the file

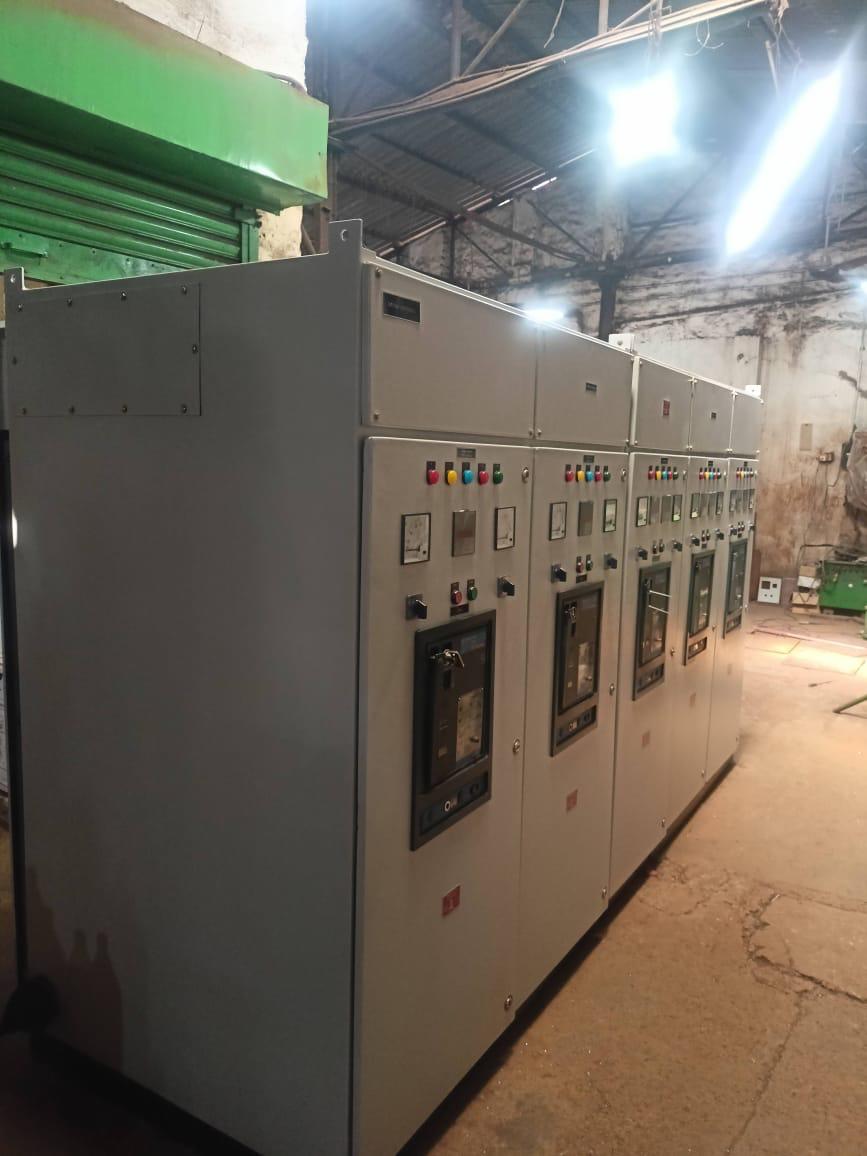

Real builds, real installs.
Answers before you ask.
What standard are AM Electricals AMF/DG Sync panels built to?
We build to IS 8623 (aligned with IEC 61439-2), with CPRI 6000A type-tested designs available and an ISO 9001 quality process throughout. Full type-test evidence is available on request.
Can you customise the AMF/DG Sync panel to a specific SLD?
Yes. Every non-standard job is engineered to your single-line diagram, with BOQ, GA and wiring drawings reviewed by our founder before build starts.
What is the typical lead time from PO?
Standard panels ship in 3 to 5 weeks. Custom builds are quoted with a firm delivery commitment. Same-week site visits across West Bengal, Jharkhand, Odisha and the Northeast.
Do you offer commissioning and FAT support?
Yes. FAT runs at our Kolkata factory before dispatch, and site commissioning support is available for orders across India.
Send us your spec.
Attach SLD, load list or a photo of the existing panel over WhatsApp. Reply within one business day.
